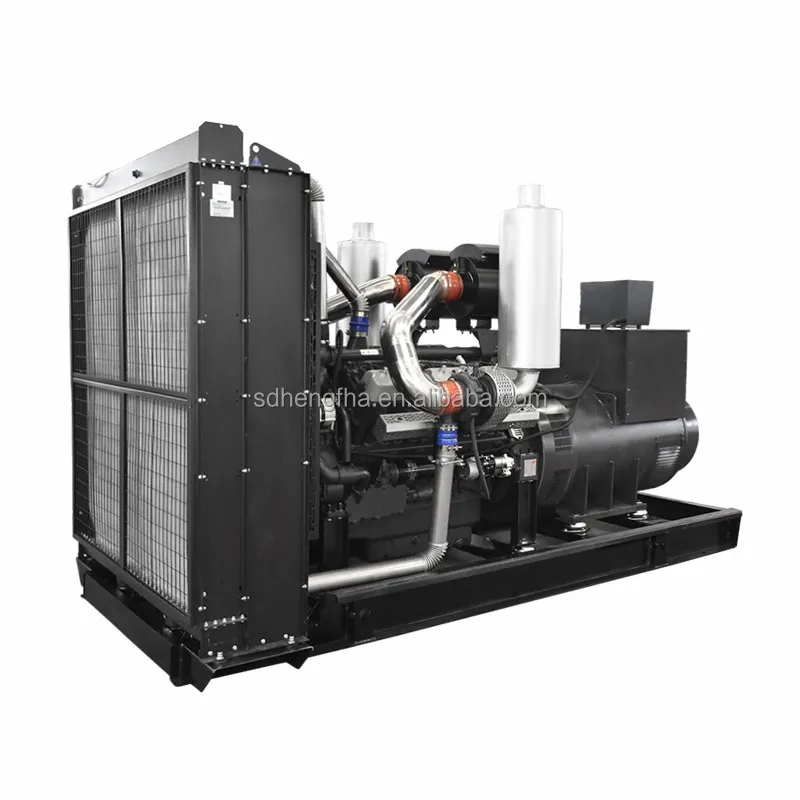

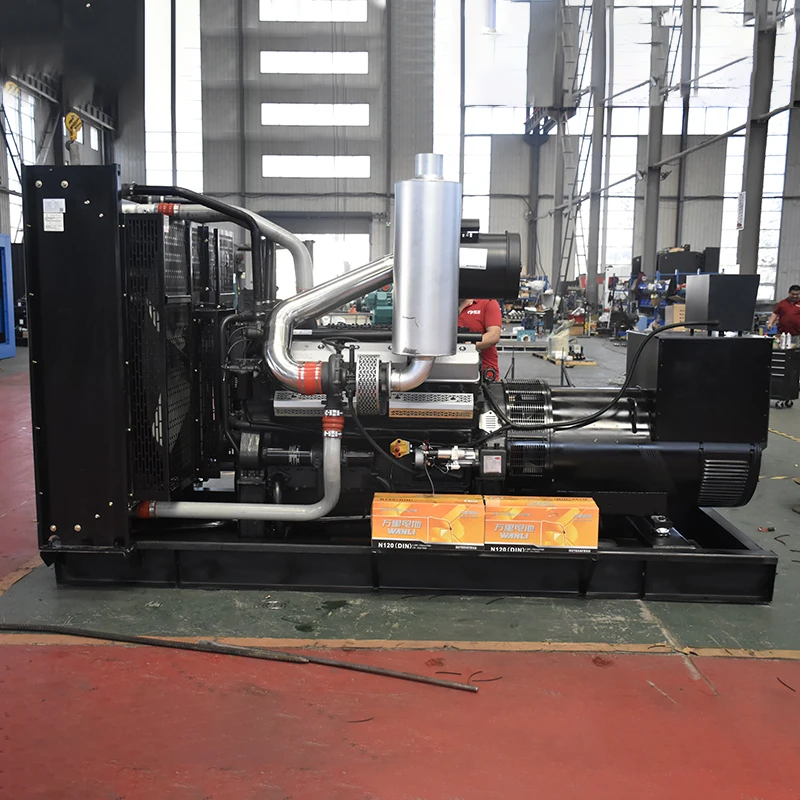

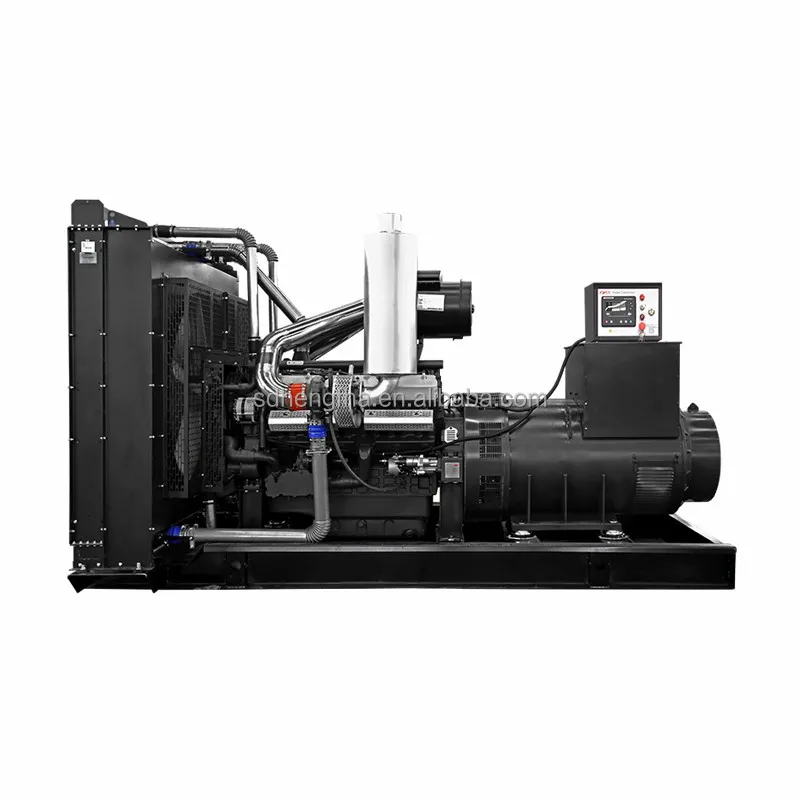

brand new customization diesel generator 700kva industrial power generator 700kva
$107,406.57
20 in stock
Description
- Hign-concerned Chemical: None
- Origin: Mainland China
- Warranty: 3months-1year, 12 Months/1000 Hours
- Place of Origin: Shandong, China
- Brand Name: Hengfha
- Model Number: HF700GF
- Rated Voltage: 110V, 220V, 230V, 240V, 380v, 400V, 480V, 400/230V
- Rated Current: 1008A
- Speed: 1500/1800RMP
- Frequency: 50/60HZ

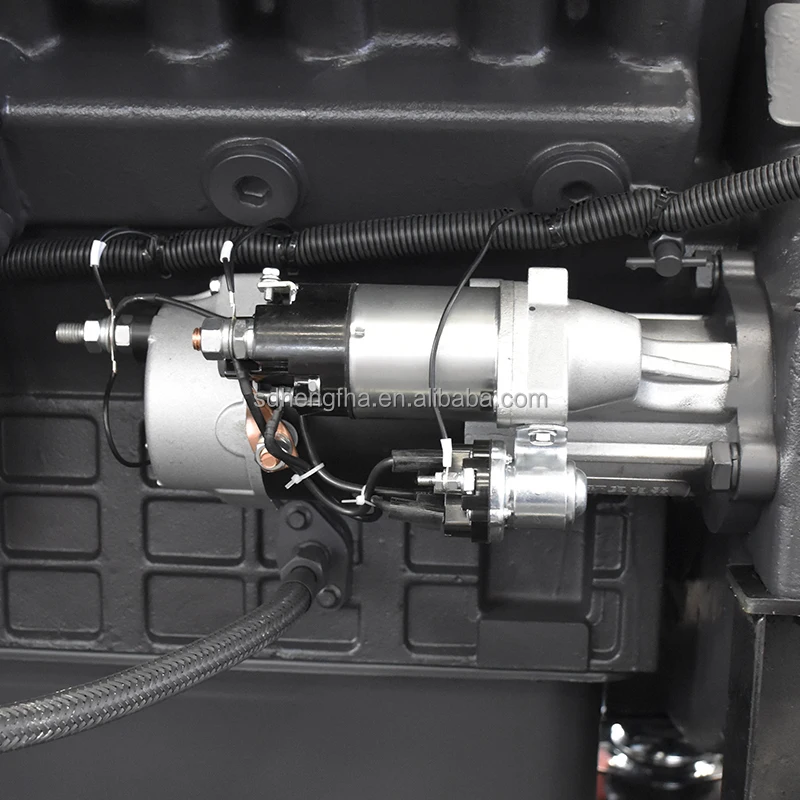

- Starting system: 24V DC Electric Start
- Type: Open Frame
- Weight: 5500KG
- Cooling System Type: Water Cooling System
- Product Name: diesel generator 700kva industrial power generator 700kva
- Engine: shanghai series 12V135
- Engine Model: KPV630(12V)
- engine power: 630kw
- fuel supply method: direct injection
- speeding adjustment method: electrical adjustment method
- intake method: turbocharged
- start method: electric start
- cooling system: water cooled
My friend! Thank you very much for clicking to visit our products.You can purchase them directly after seeing them. We will arrange delivery for you as soon as possible. After seeing your message, I will reply to you as soon as possible. Or add my (whatsapp)+8618692221693 Email: 982106805@qq.com Tel: +8619116984354 (We.Chat): +8619116984354 LINE(ID):cgy2002021815 KKT(ID):yhtlly021815 Facebook(ID):Mali YI I wish you a happy shopping!
Factory video
Products Description
Product Paramenters
|
Generator Sets Technical Parameters
|
|
|
|
Unit Type:HF700GF
|
Steady-state Voltage Adjustment Rate(%):≤±1
|
|
|
Output power:700KVA
|
Voltage Fluctuation Rate(%):≤±0.5
|
|
|
Power Factor:COSΦ=0.8(lag)
|
Instantaneous Voltage Regulation Rate(%):＋20～－15
|
|
|
Output voltage:400V/230V
|
Voltage Steady Time(s):≤1
|
|
|
Rated Frequency:50/60Hz
|
Frequency Fluctuation Rate(%):≤±0.5
|
|
|
Rated Rotation Speed:1500/1800rpm
|
Transient Frequency Adjustment Rate((%):＋10～－7
|
|
|
Fuel Brand:(Standard)0# Light Diesel oil(General Temperature)
|
Frequency Steady-State Time(S):≤3
|
|
|
Dimensions:4000*1900*2400 L×W×H mm)
|
Fuel consumption(100%load):196g/kW·h
|
|
|
Unit Weight:8000kg
|
Noise(LP7m):75dB(A)SILENT
|
|
|
Diesel Technical Specifications
|
|
|
|
Brand/Origin:shanghai series 12V135
|
Cooling way : Close water cycle cool
|
|
|
Diesel Brand: KPV630(12V)
|
Oil Supply Way: Direct Spray
|
|
|
Cylinder Number/Cylinder Type:12/V
|
Intake Way: Turbocharging
|
|
|
Cylinder Diameter & Stroke: 135*168mm
|
Over Load capacity:110%
|
|
|
Fuel consumption:203g/kW·h
|
Rotation speed:1500/1800rpm
|
|
|
Start Method:DC24V electric start
|
Frequency:50/60hz
|
|
|
Generator Technical Specifications
|
|
|
|
Generator Brand: stamford,farrand,and so on as your choose
|
Protection Grade:IP22
|
|
|
Generator Type:full copper Permanent Magnet Brushless AC generator
|
Wiring Way:Three – phase,Four – wire, Y – Type
|
|
|
Rated power:700KVA
|
Adjustment Way:AVR(Automatic Voltage regulator)
|
|
|
Rated Voltage:400V/230V
|
Output frequency:50/60Hz
|
|
|
Insulation Grade:H
|
Output factor:COSΦ=0.8(lag)
|
|
Details Images

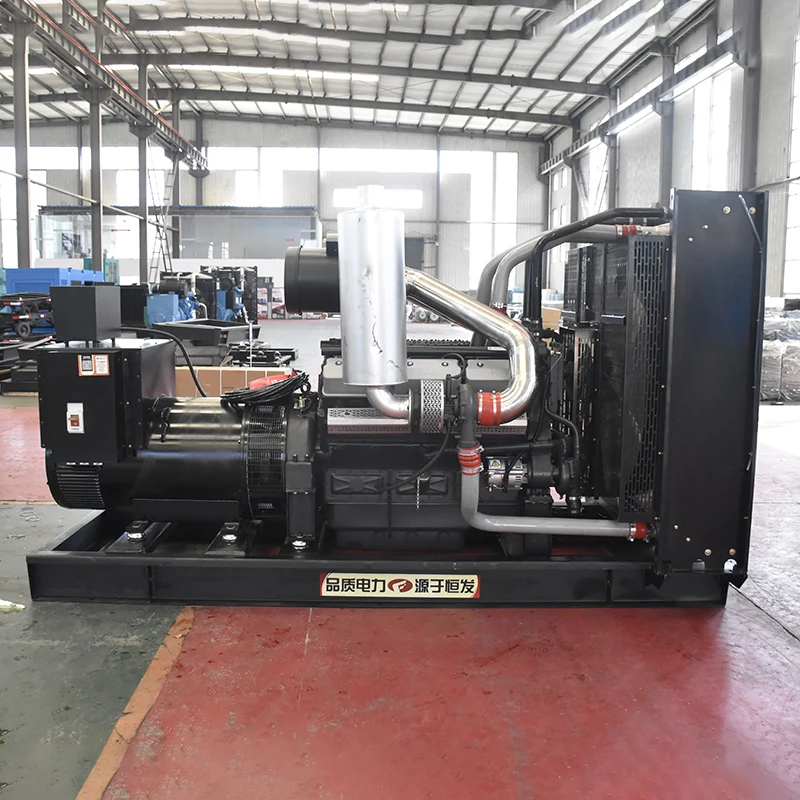

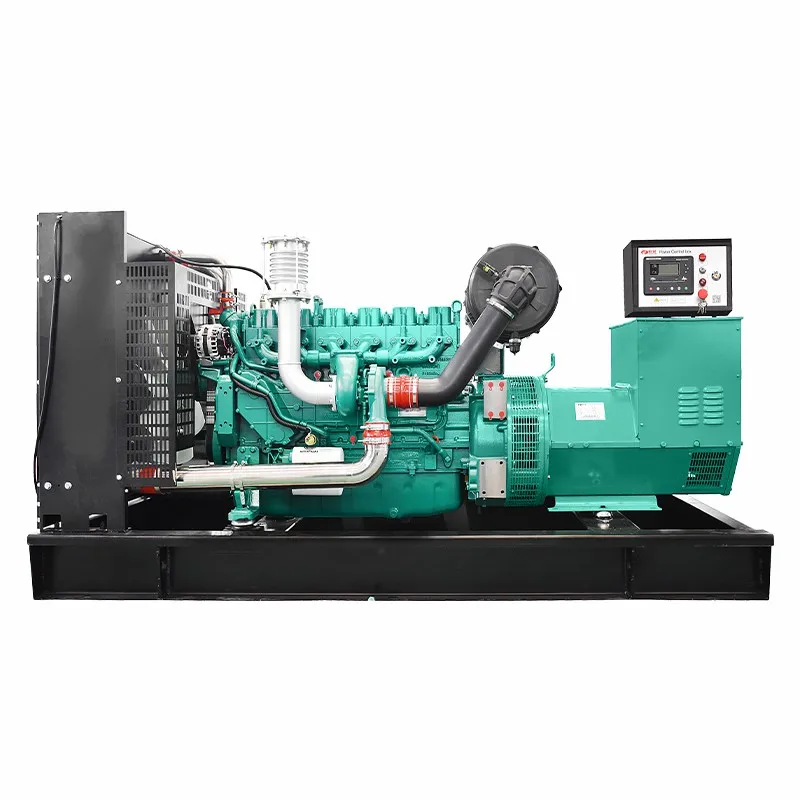

The diesel engine is ricardo diesel engine which is the famous brand in the world.this type diesel genset is applied to backup power in any field

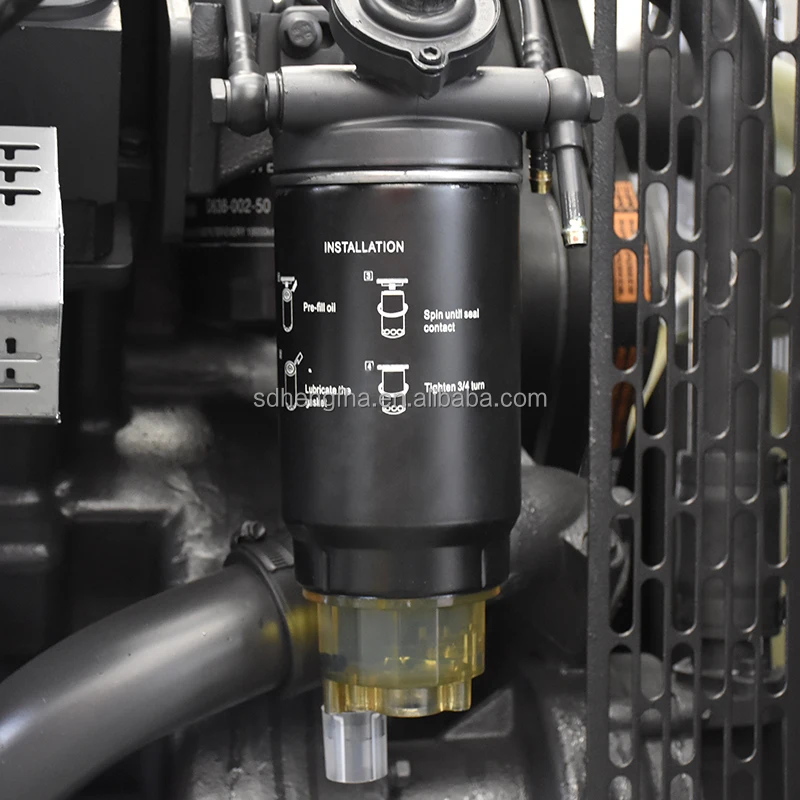

The fuel injection pump plays a crucial role in the performance of a diesel engine

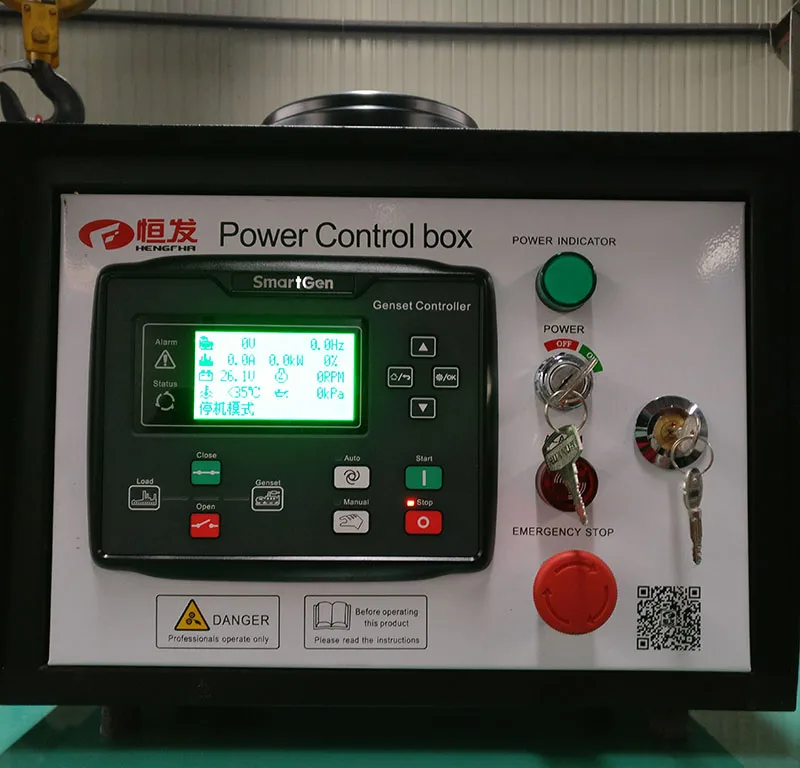

Four protection system
The protection system will be warning if there is High water temperature ,low oil pressure and over current or over voltage
The protection system will be warning if there is High water temperature ,low oil pressure and over current or over voltage
Company Profile

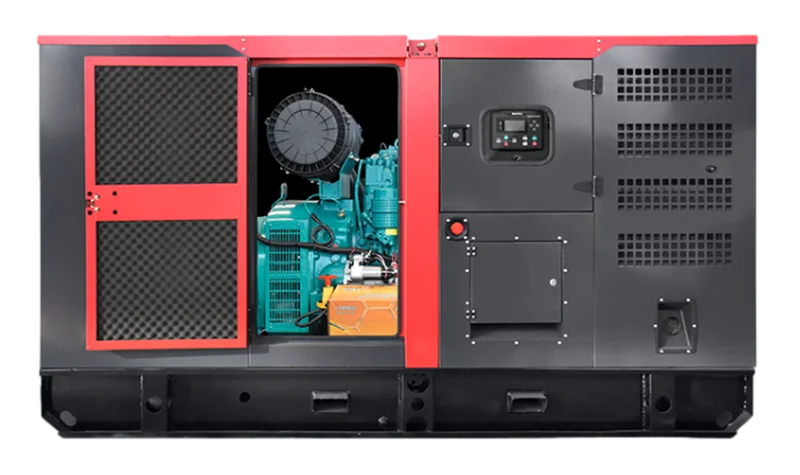

silent canopy
This is silent canopy which adopts high quality sound-absorbent materials

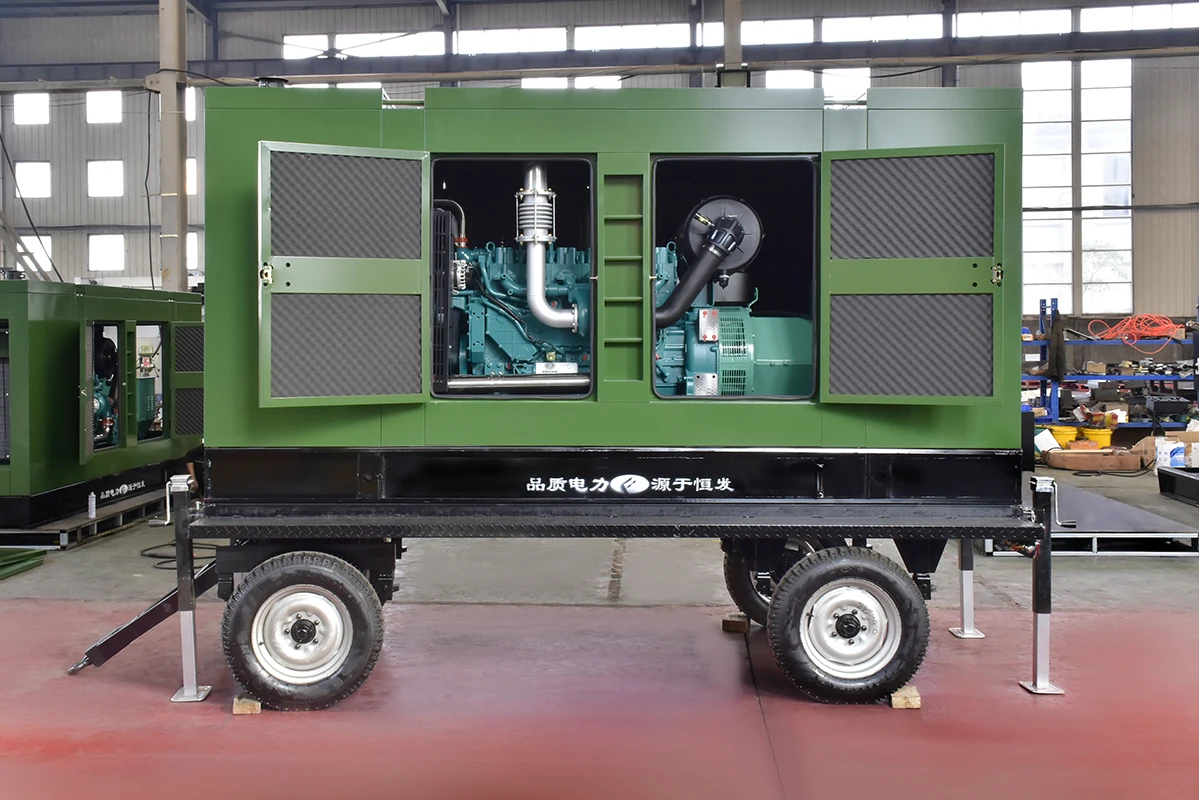

Mobile trailer silent diesel
This type of genset is mobile trailer silent diesel generator which can be used ourdoors and will not make noise

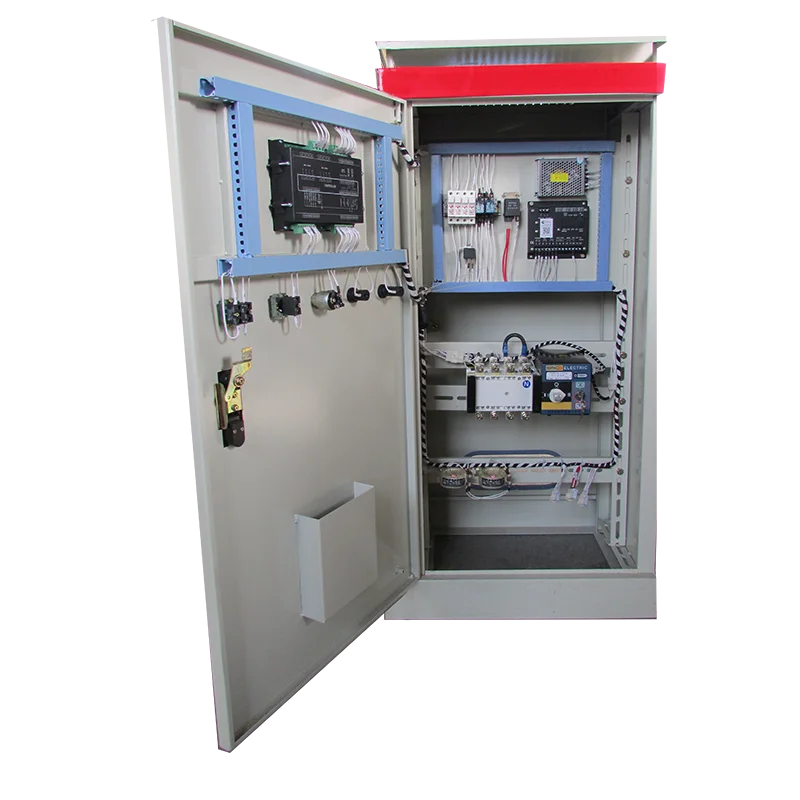

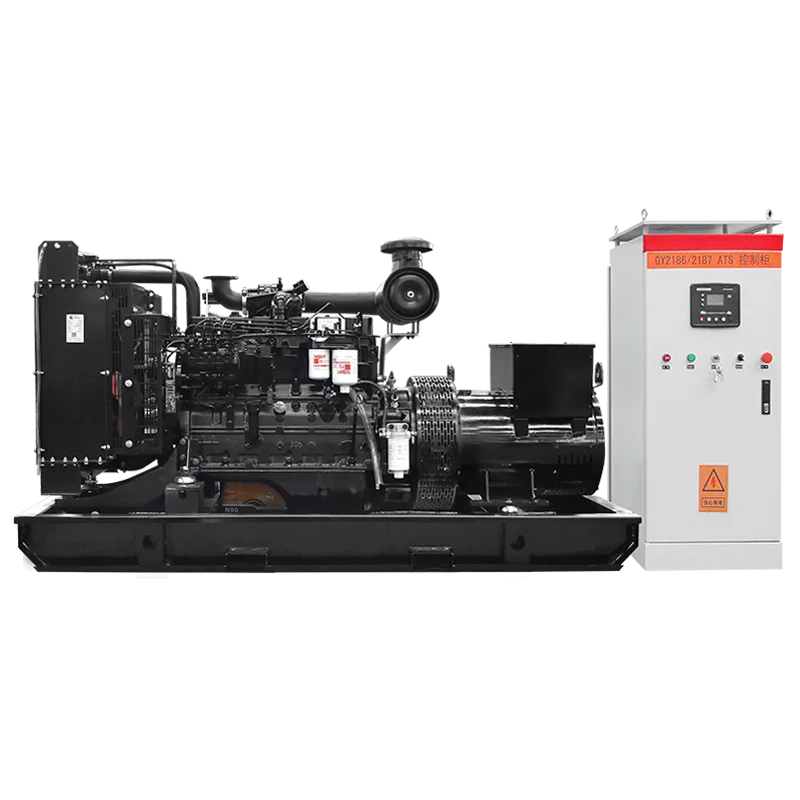

ATS(Automatic transfer switching )
if there is no electricity, this ATS system will self-starting for providing electricity

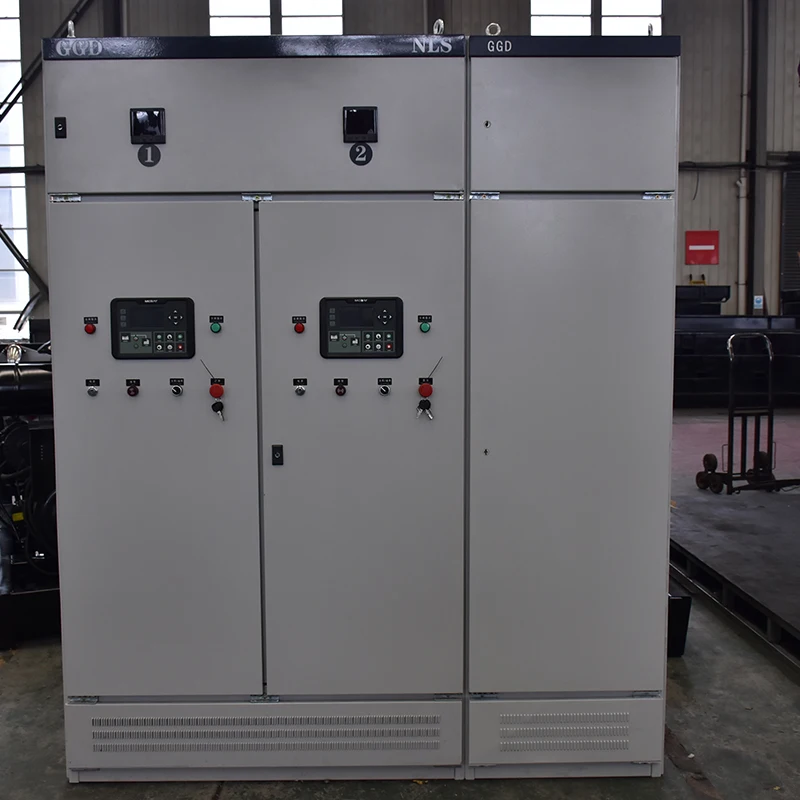

Diesel generators automatically parallel cabinet
This type is usually used in big power area
Recommend Products
cummins diesel generator
Weichai diesel generator

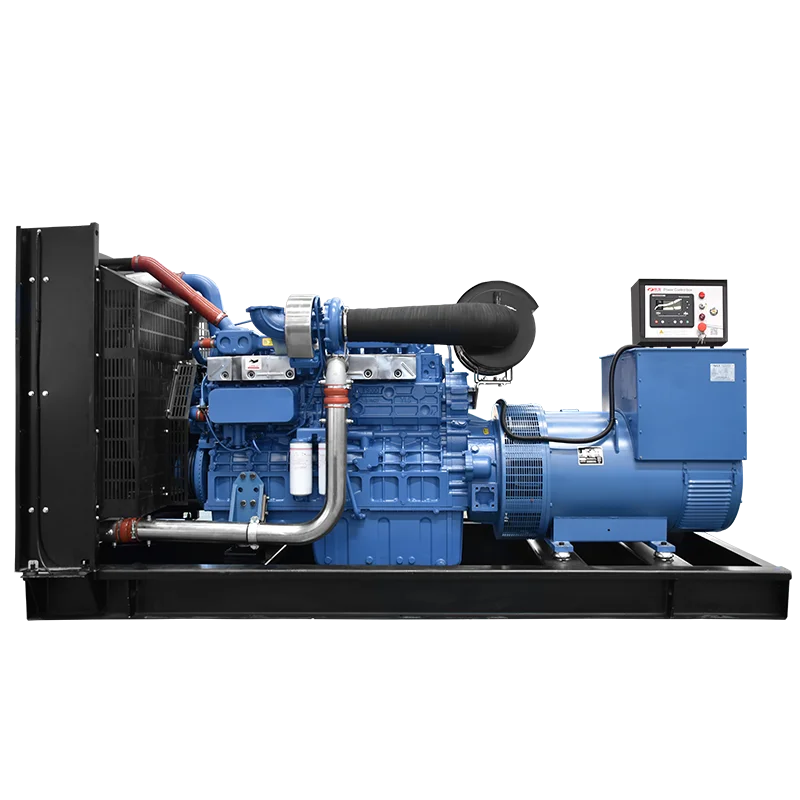

Yuchai diesel generator

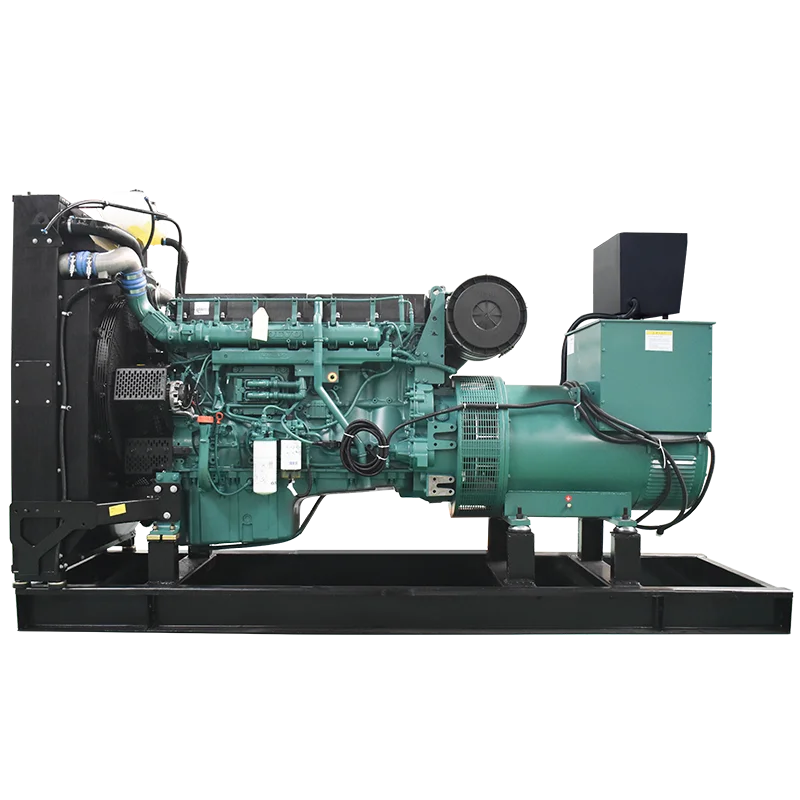

VOLVO DIESEL GENERATOR

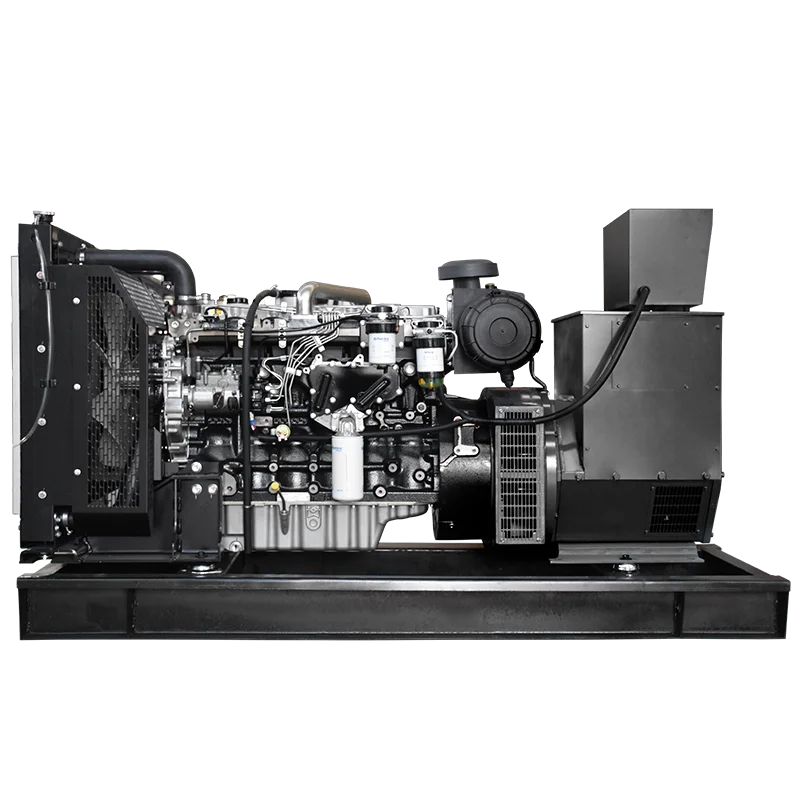

PERKINS DIESEL GENERATOR

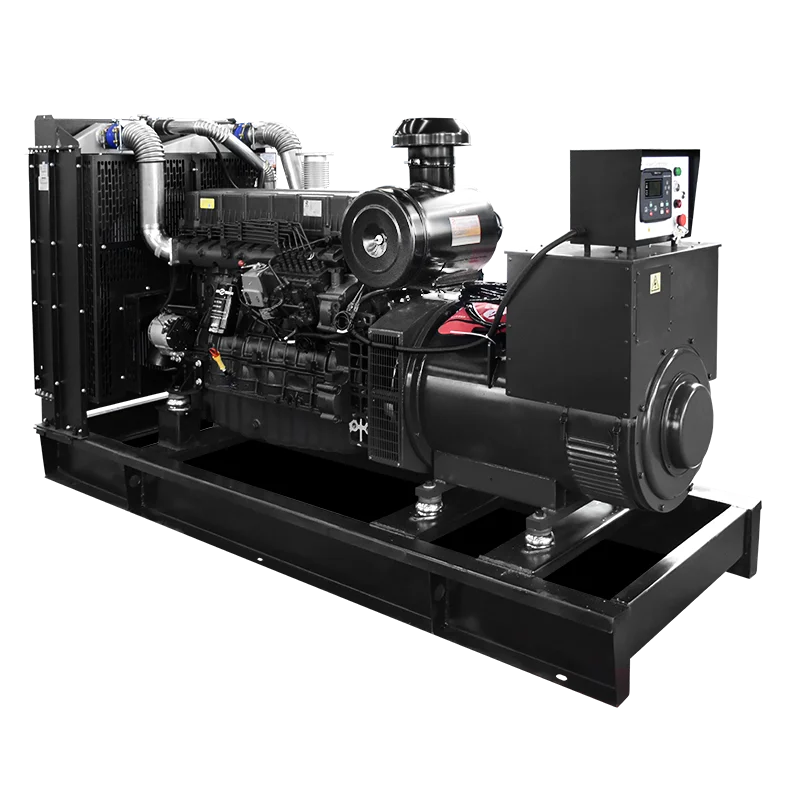

SHANGCHAI DIESEL GENERATORS
RICARDO SERIES DIESEL GENERATOR
MOBILE POWER DIESEL GENERATOR
POWERFUL DIESEL GENERATOR
CUSTOMER VISITING
DELIVERY SITE
